  • Information: RMS Software V1.3.1 Upload the property file and firmware update

    If you use the RMS-Software 1.3.1 and got the error message "Error reading the device properties" while you read the Properties you need to upload the property-file of the device.
    Reason:
    New RMS-devices aren't implemented in the RMS-software, if you can't read out the properties for example the RMS-LOG-T30-868, it's necessary to upload the device definitions of the device.
    1. Tools--> Setup choose the device for example the RMS-LOG-T30-868

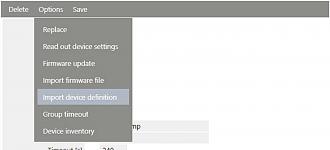

    2. Options --> "Import device definitions" and upload the definition file
    3. Options --> Read out device settings
    4. after a interval it's possible to change the device settings

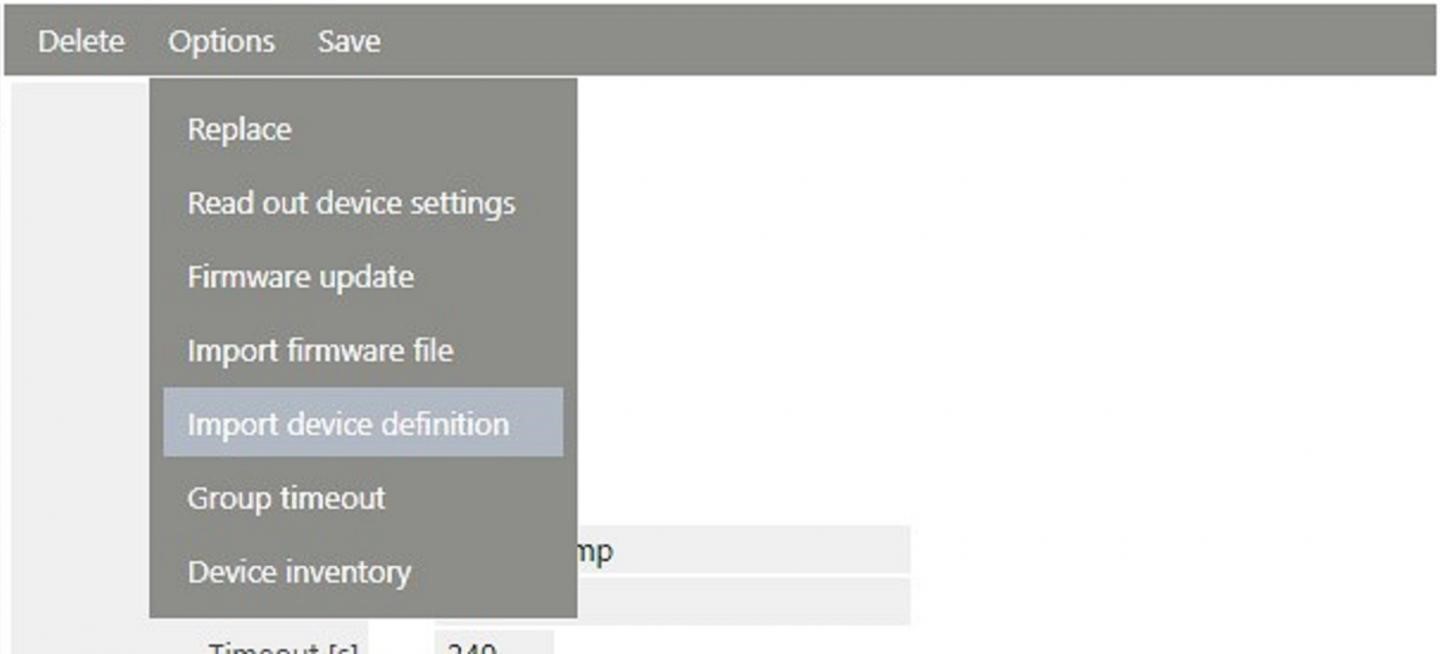

    Click image for larger version Name: Import_device_defintion.jpg Views: 0 Size: 48.8 KB ID: 661

    Beware!
    There is an issue of the RMS-Software (Version 1.3.1) to update the firmware of these devices. If you press the button "Firmware-Update" and the error message pops "NoPropertyData" up, there is no option to make a firmware update of this device. That issue is fixed in the new RMS-Software V2.0 (Cloud).

    For any question please contact Rotronic support
