  • Information: RMS Software V1.3.1 Upload the property file and firmware update

    If you use the RMS-Software 1.3.1 and got the error message "Error reading the device properties" while you read the Properties you need to upload the property-file of the device.
    Reason:
    New devices aren't implemented in the RMS-software, if you can't read out the properties for example the RMS-LOG-T30-868, it's necessary to upload the device definitions of the device.
    1. Tools--> Setup choose the device for example the RMS-LOG-T30-868

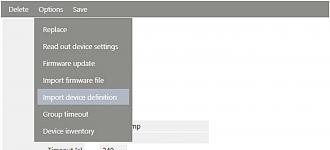

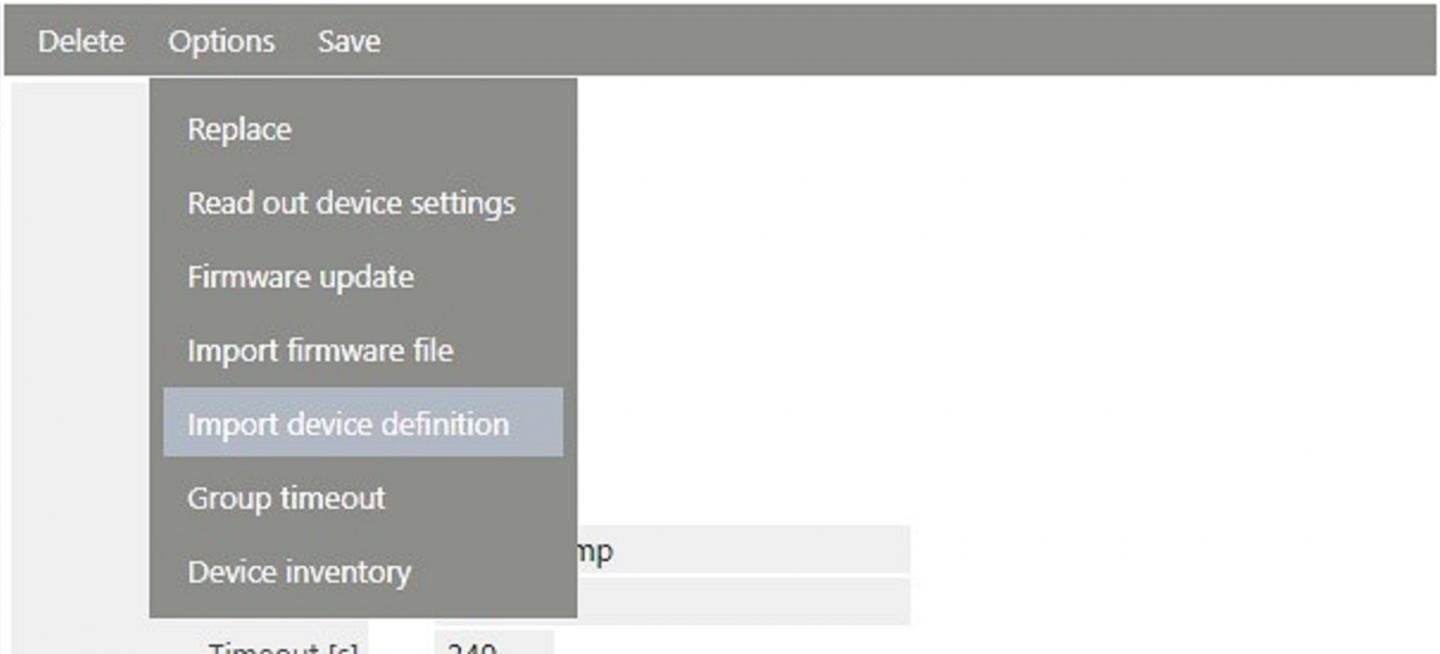

    2. Options --> "Import device definitions" and upload the definition file
    3. Options --> Read out device settings
    4. after a interval it's possible to change the device settings

    Click image for larger version Name: Import_device_defintion.jpg Views: 0 Size: 48.8 KB ID: 626

    There is a issue of the RMS-Software (Version 1.3.1) to update the firmware of these devices . If you press the button "Firmware-Update" and the error message pops "NoPropertyData" up. This issue is fixed in the RMS-Software V2.0.

    Please inform your distributor and send them the devices. The distributor will help you and update your devices.
