  • New RMS device: RMS-LOG-T30-915

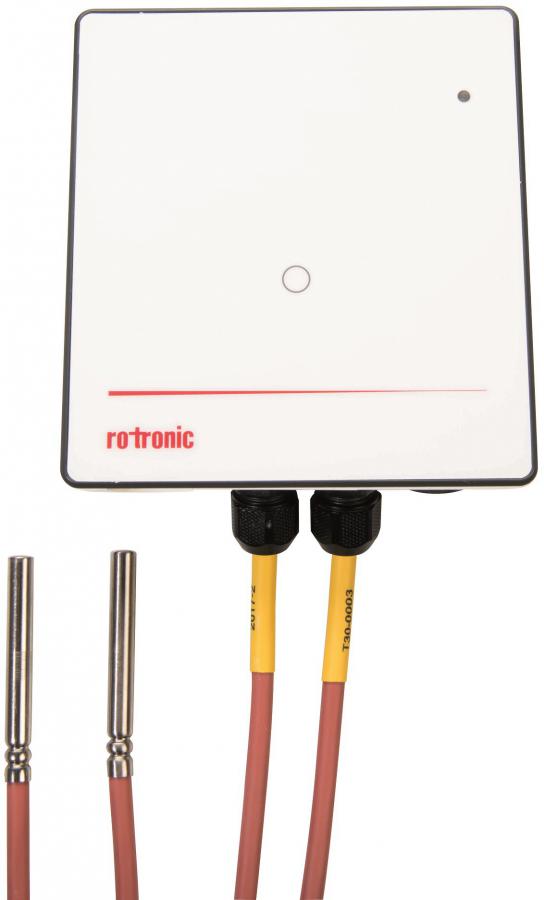

    RMS-LOG-T30-915
    Click image for larger version Name: RMS-LOG-T30-L_4.jpg Views: 0 Size: 27.4 KB ID: 532
    • RF 915MHz interface to the RMS-GW-915(RF gateway)
    • Data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement.
    • Main features
      • Saving of up to 44,000 data points
      • 2 x PT100 sensor connections
      • 2-, 3- or 4-wire connection
      • ±0.1 °C accuracy in measurement range
      • Conforms to FDA CFR 21 Part 11 / GAMP 5
    • Note - for customers hosting their own web server (not RMS Cloud user): Please upload the device definition (device properties) file - Download
      See also forum thread
    • Note - Beware that the T30-915 is working only with RMS SW Version 1.3.0+
    • Note - Beware that the T30-915 requires a RMS-GW-915 with FW version V2.1! The RMS-GW-915 Firmware can be found here.
