  • New Probes - RMS-HCD-S and RMS-HCD-IC102

    RMS-HCD-S and RMS-HCD-IC102

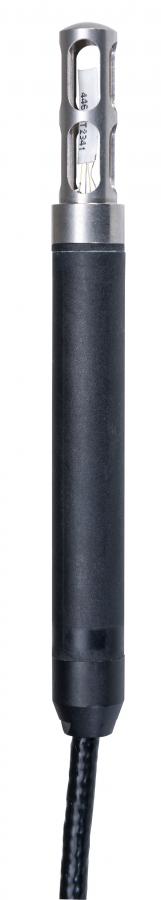

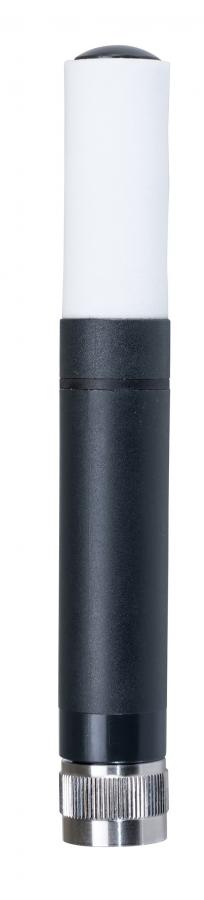

    Click image for larger version Name: RMS_HCD.jpg Views: 0 Size: 12.3 KB ID: 530 Click image for larger version Name: RMS-HCD-IC_hoch_1.jpg Views: 0 Size: 12.3 KB ID: 531

    Device
    • Measures relative humidity and temperature
    • Compatible with RMS data loggers and RMS software

    Technical Data
    • Humitity range 0…100 %RH
    • Temperature range of application
      • RMS-HCD-S -40…85 °C
      • RMS-HCD-IC -100…200 °C (100h at 200°C, permanent until 190°C)
      • Electronics -40…85 °C
    • Humidity sensor HYGROMER HT-1
    • Long-term stability <1 %RH/year
    • Accuracy ±0.8 %RH, ±0.1 K @ 23 °C
    • Material: PC, PPS, stainless steel 1.4301

    Applications
    • Pharmaceutical monitoring
    • Food monitoring
    • Museum monitoring
    • Monitoring conforming to GxP and FDA CFR PART 11

    Variants
    • RMS-HCD-S -> Standard probe, black
    • RMS-HCD-S3 -> Standard probe, white
    • RMS-HCD-IC102 -> Industrial probe, 2 m cable

    Datasheet: https://www.rotronic.com/en/producta...wnload?id=1804
