Device Dimensions
Detailed dimensions of the HF3A to assist in planning the installation space.

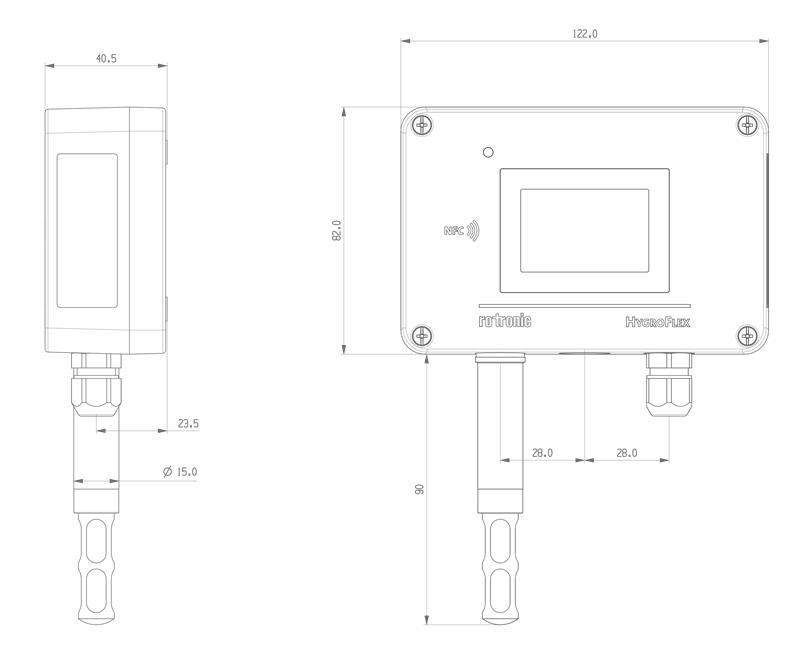

HF3A - Wall |
|
 |
 |

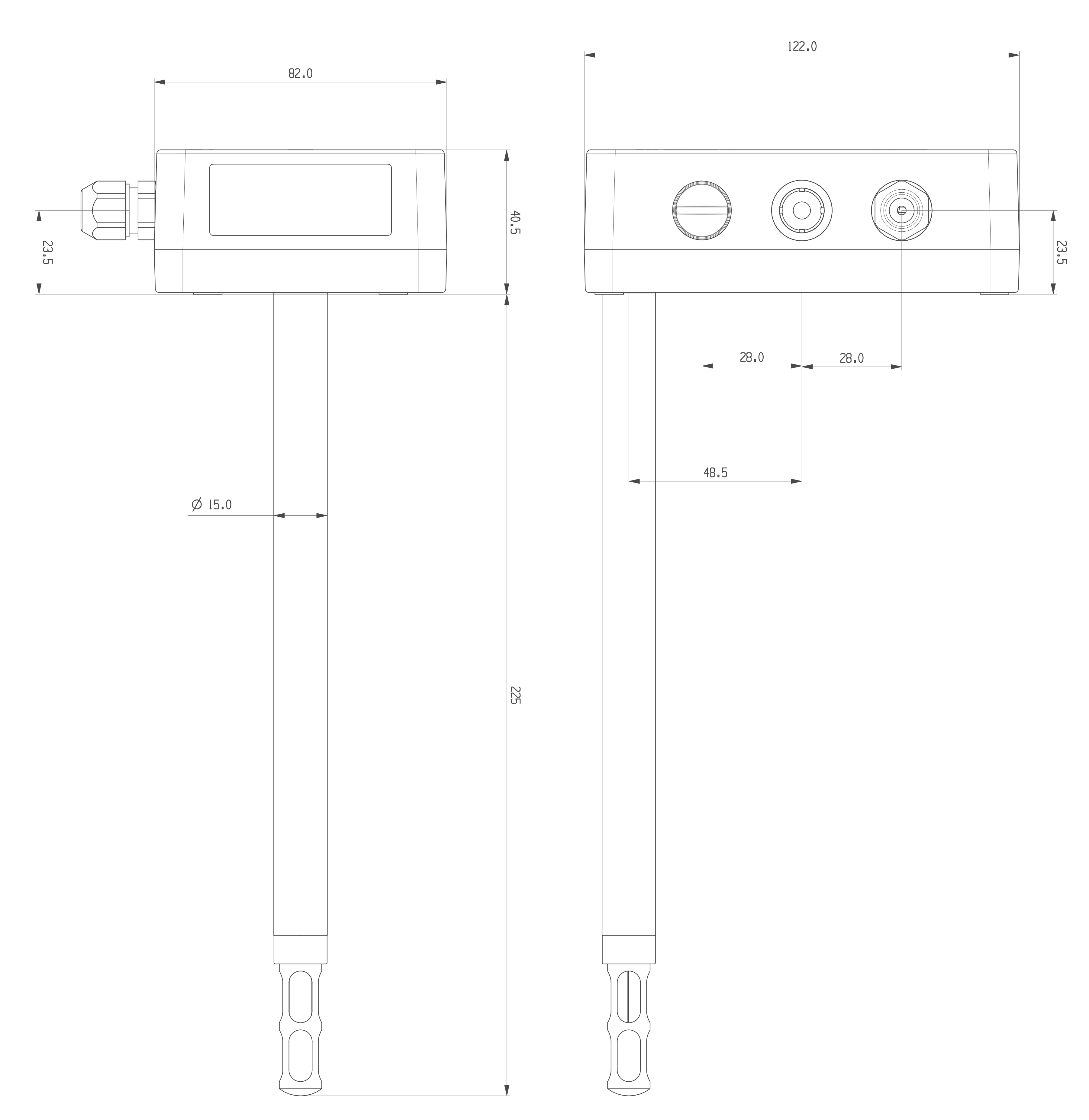

HF3A - Duct |
|
 |
 |

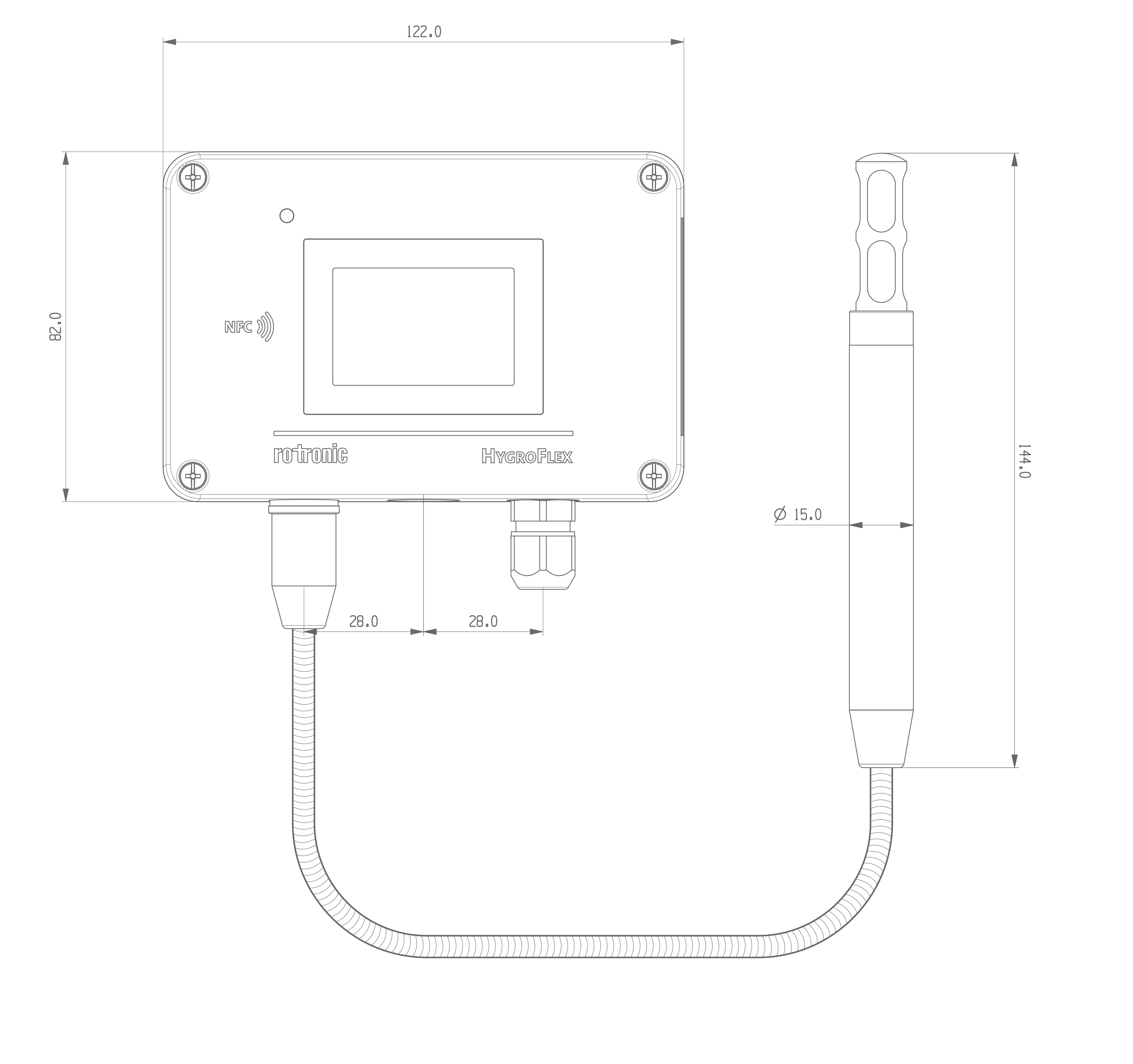

HF3A - Cable |
|
 |
 |
General Information
Functions |
Description |
Dimensions |
122 x 82 x 40.5 mm (Housing only) 144 x 15 mm (Probe only) 122x172x40.5mm (Wall: Housing + Probe) 122x82x265.5mm (Duct: Housing + Probe) |
Housing material |
PC-ABC |
Weight |
Wall: 204g Duct: 226g Cable 332g |
IP-Protection |
IP651 |
1IP65 is only fulfilled, when the necessary number of conductors is used so that the M12 cable strain provides an effective seal.
