Creation of Database Tables

<< Click to Display Table of Contents >>

Navigation:  Software Overview > RMS Monitoring Software > Server Software Installation > RMS Software V2.8.0 > RMS V2.8.0 Installation using MS Windows Server 2019 & MS SQL 2022 - Express Edition >

Creation of Database Tables

Step 1

Expand databases to find the rms database. Click on "Open".

install v2.4.0 59

Step 2

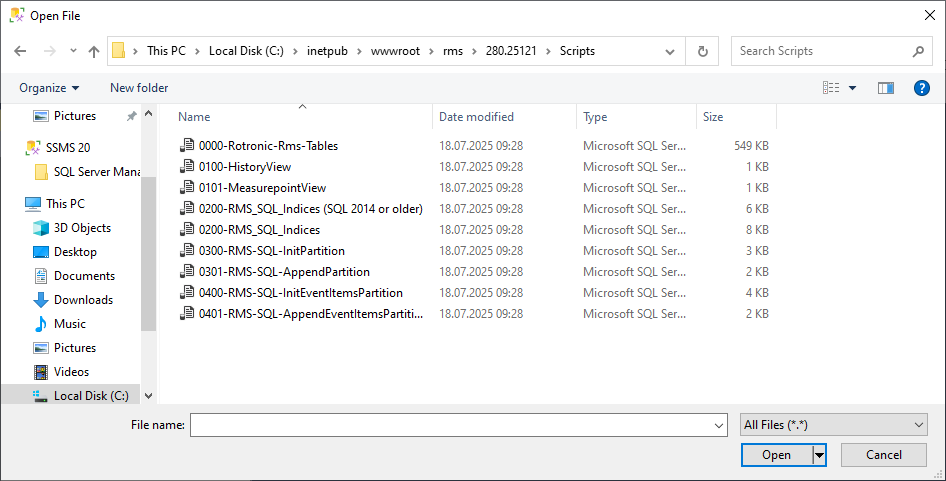

Open the extracted RMS software file. Open the file 0000-Rotronic-Rms-Tables.sql.



clip0207

Step 3

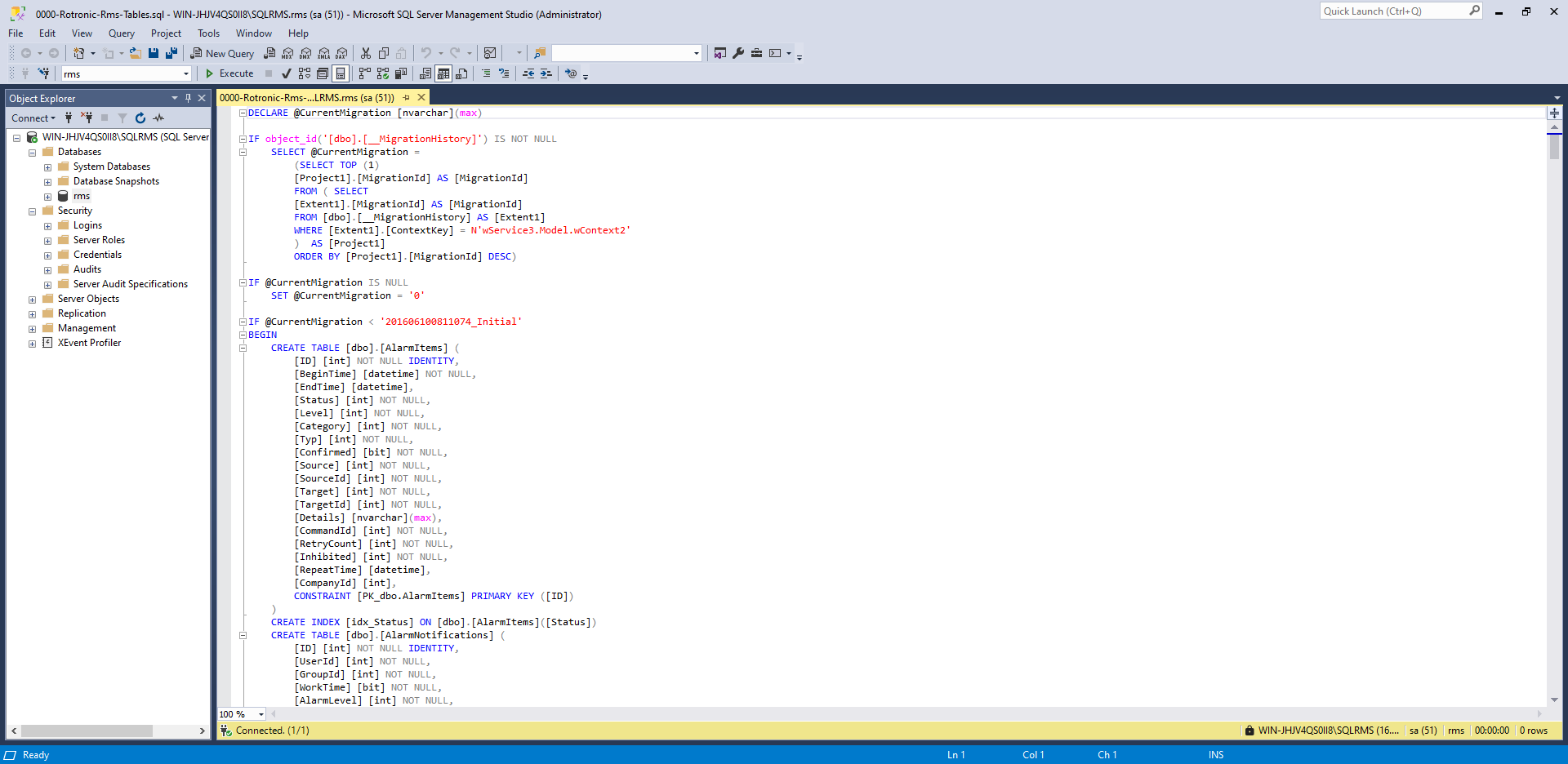

The following window will open.



clip0208

Step 4

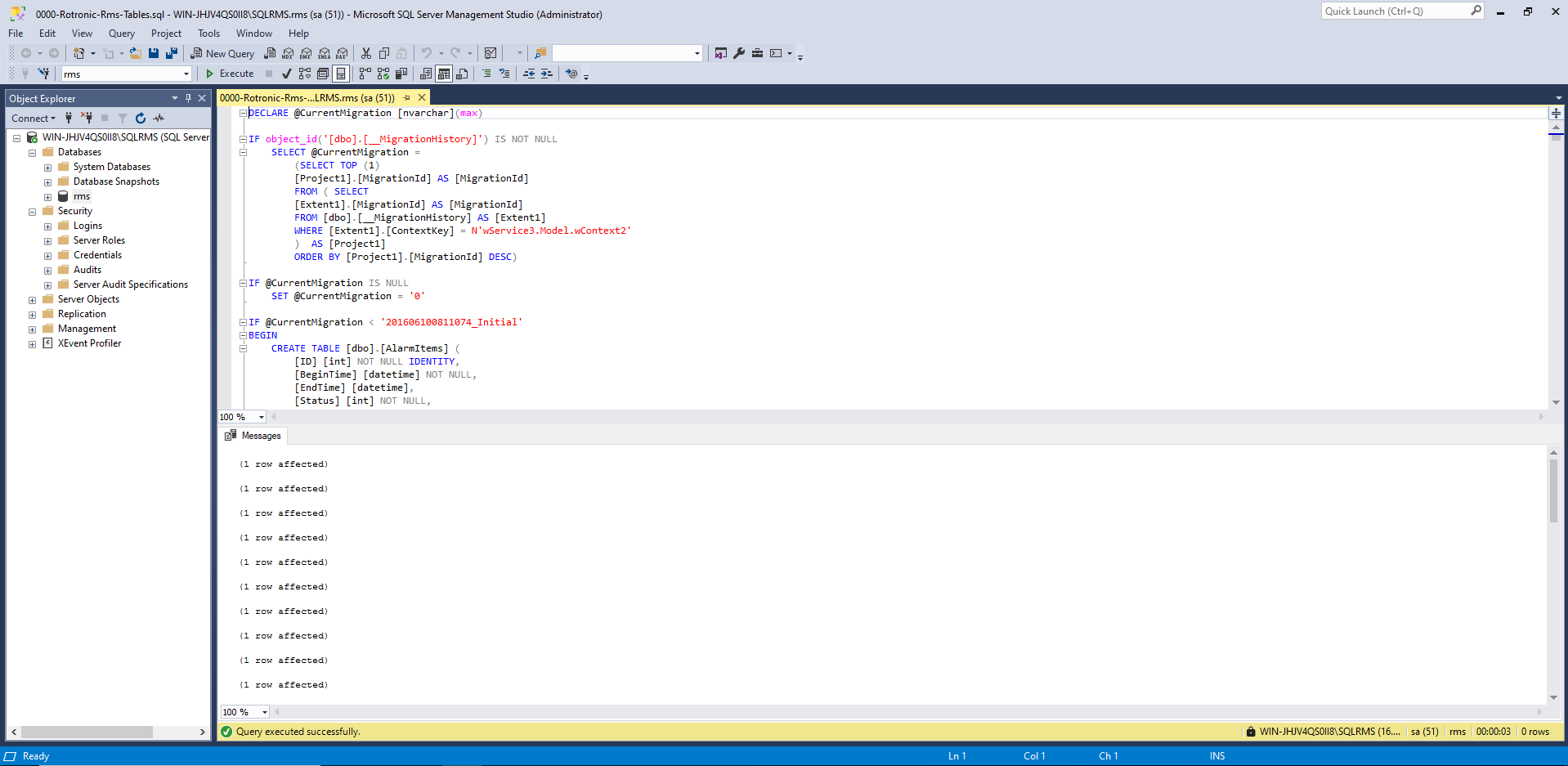

Click on "Execute" to generate the tables. The RMS database tables are now created. Close the window.

clip0209

Step 5

Option 1: Installation of the RMS Software V2.8.0 Using Mixed Authentication Mode.



Option 2: Installation of the RMS Software V2.8.0 Using Windows Authentication Mode.



Option 3: Installation of the RMS Software V2.8.0 not on C: with Mixed Authentication Mode.



Option 4: Installation of the RMS Software V2.8.0 not on C: with Windows Authentication Mode.



Created: 29.07.2025
