<< Click to Display Table of Contents >> Navigation: Humidity & Temperature Devices > Transmitter > HF5A > Accessories > Tuchel Connector |
The HygroFlex 5 Advanced can be configurated with the T7-Tuchel connector using the accessory T7-0001 as shown in the image below.

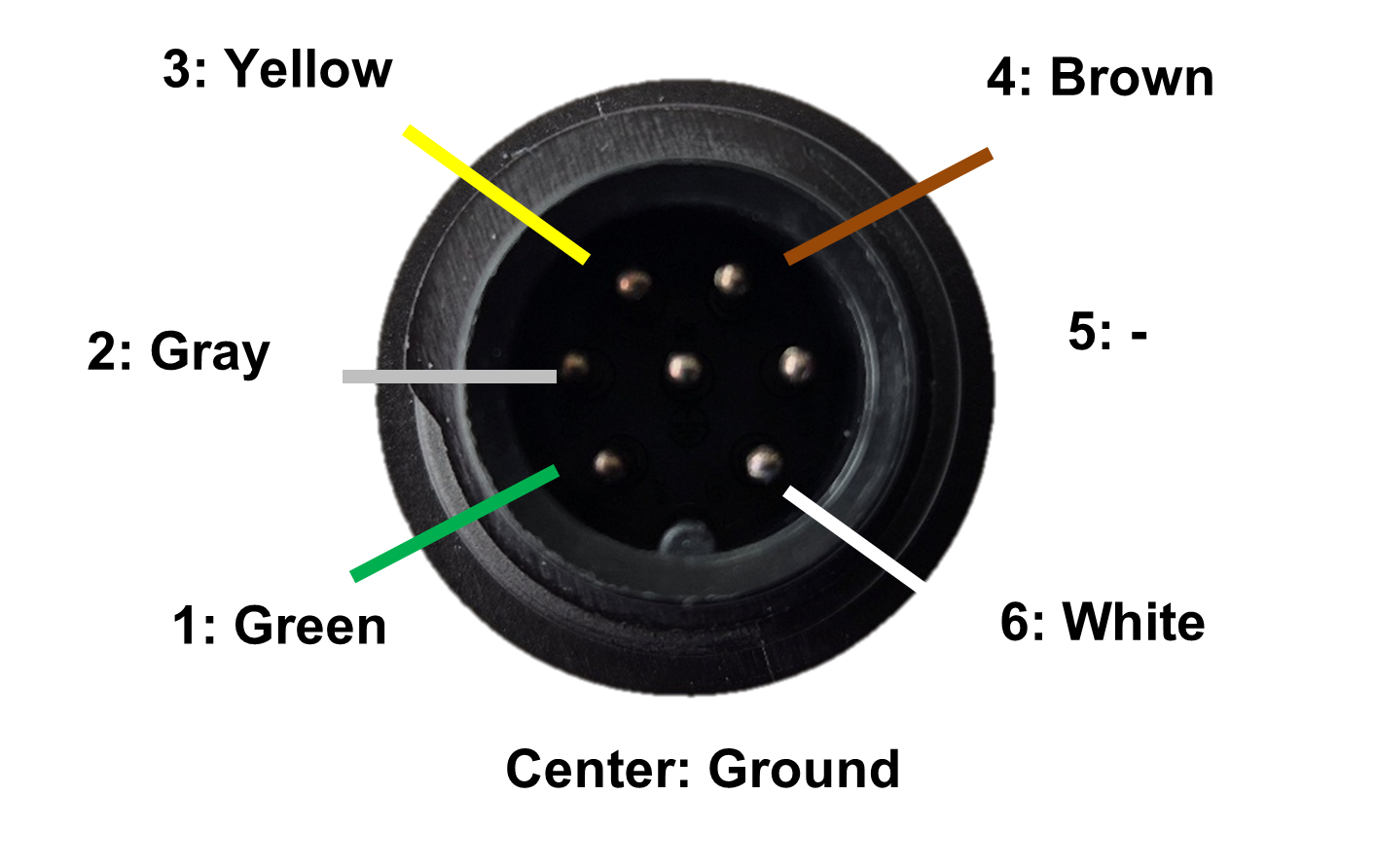

The Tuchel connector can be wired by the customer according to the color and pin assignments illustrated below.
|
|
