Read out MODBUS TCP with MODBUS Master

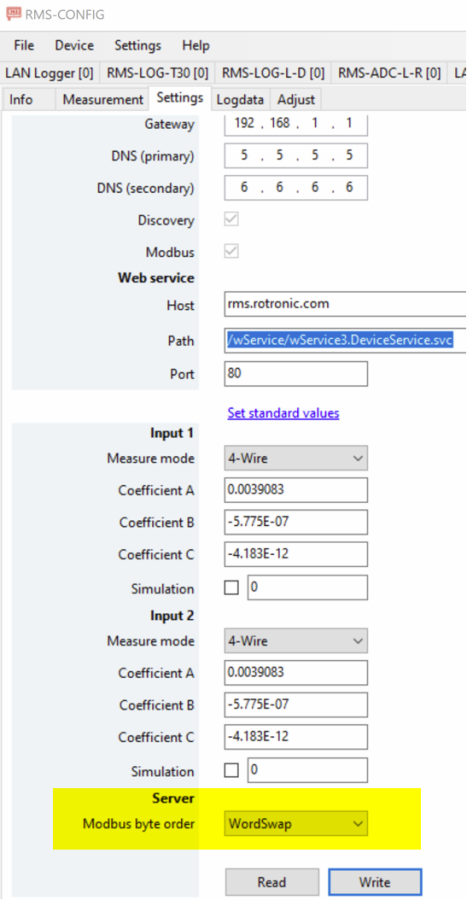

Please check with RMS-CONFIG what the MODBUS byte order settings of the Logger are:

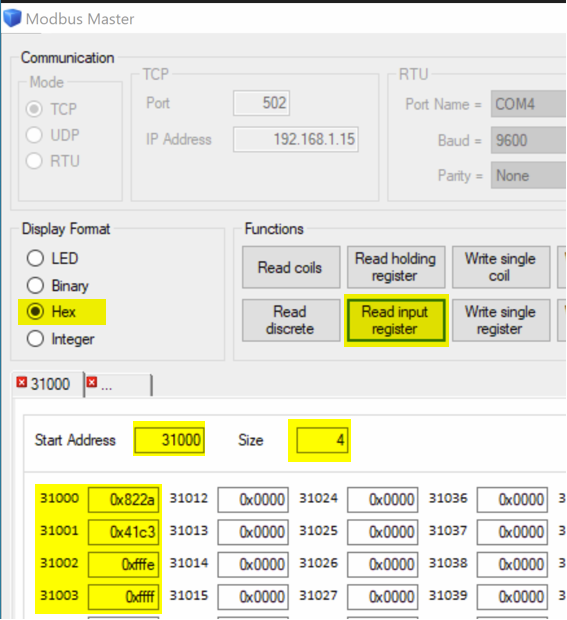

​Once this is done, we configured the MODBUS Master to read out the following data:
​
The final step was to understand the word swap meaning:

• Read out: 822A 41C3
• Word swap: 41C3 822A

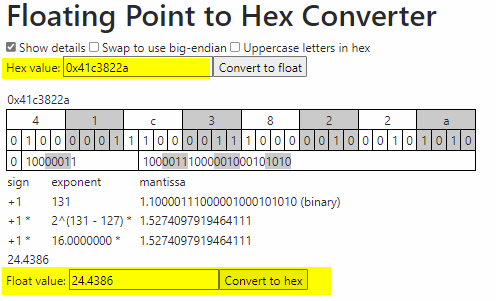

With a floating point to hex converter, we then get a reading:
​

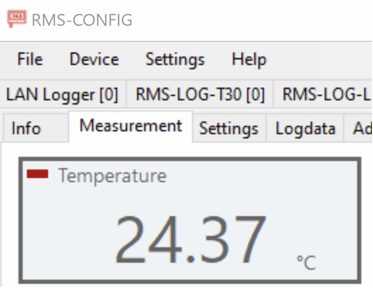

This corresponds (more or less because of the live reading) to the value in RMS-CONFIG:
​​
​​

Quick pointer: for any integration of RMS devices via MODBUS TCP, always check the byte order with RMS-CONFIG!
