New RMS Device: RMS-ADC-L-R

Article #836 | 2020-05-15 05:42 UTC | ME_Rotronic

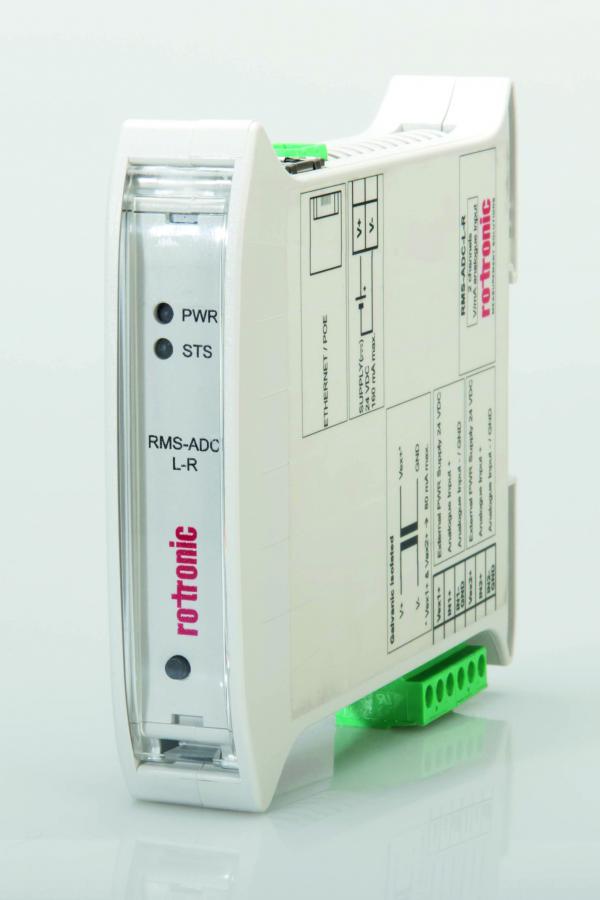

RMS-ADC-L-R

This device is a data logger with two integrated analog-to-digital converters. Main features Saving of up to 44,000 data points 2 sensor connections Selectable input range for each input: 0..1V, 0..5V, 0..10V, 0..20mA or 4..20mA ±0.03% f.s. accuracy Conforms to FDA CFR 21 Part 11 / GAMP 5 Link: https://www.rotronic.com/en-ch/rotro...s-adc-l-r.html Note - for customers hosting their own web server (not RMS Cloud user): Please upload the device definition (device properties) file - Download See also forum thread Note - Beware that the RMS-ADC-L-R is working only with RMS SW Version 1.3.0+
