New RMS device: RMS-LOG-T30-915

Article #546 | 2019-10-03 10:10 UTC | ME_Rotronic

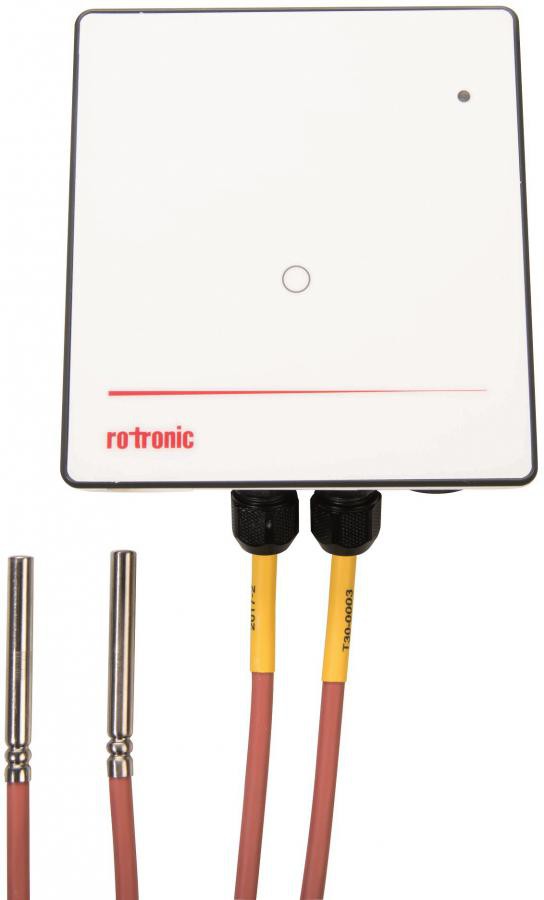

RMS-LOG-T30-915
[attachment missing]
  • RF 915MHz interface to the RMS-GW-915(RF gateway)
  • Data logger with two integrated analog-to-digital converters, to which two PT100 sensors can be connected for high-precision temperature measurement.
  • Main features
  • Saving of up to 44,000 data points
  • 2 x PT100 sensor connections
  • 2-, 3- or 4-wire connection
  • ±0.1 °C accuracy in measurement range
  • Conforms to FDA CFR 21 Part 11 / GAMP 5

Note - for customers hosting their own web server (not RMS Cloud user): Please upload the device definition (device properties) file - Download
See also forum thread
Note - Beware that the T30-915 is working only with RMS SW Version 1.3.0+
Note - Beware that the T30-915 requires a RMS-GW-915 with FW version V2.1! The RMS-GW-915 Firmware can be found here.

Attachment: image_85.jpg
